English
简体中文Full Electric Reach Stacker
QQA
.png "Full Electric Reach Stacker")
ADVANTAGES

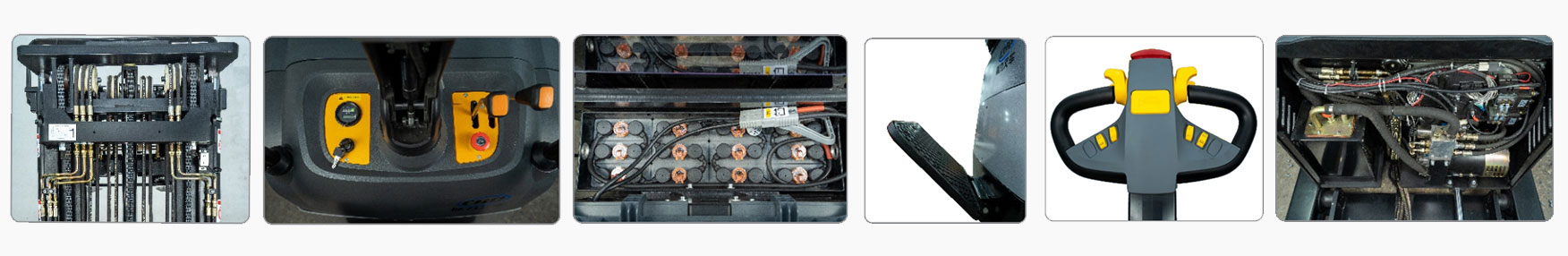

1.AC drive system gives precise control,longer battery life; Aluminum cover, goodheat dissipation for longer service life.
2.Precision electronic limit switches, controlof the maximum lifting height, to preventdamage to the motor;
2.Precision electronic limit switches, controlof the maximum lifting height, to preventdamage to the motor;
3.Emergency reverse switch.
4.Emergency power-off disconnect.
5.Ergonomic design of the control handle foreasy operation.
6.The design of integrated micro-switches,easyfor replacement.
7.Battery cover is easy to open,convenient toadd distilled water or electrolyte of the battery.
8.Display with hour time and battery status, toremind the operator to charge battery in time.
9.Controller self-diagnosis system, maketroubleshooting easier.
8.Display with hour time and battery status, toremind the operator to charge battery in time.
9.Controller self-diagnosis system, maketroubleshooting easier.

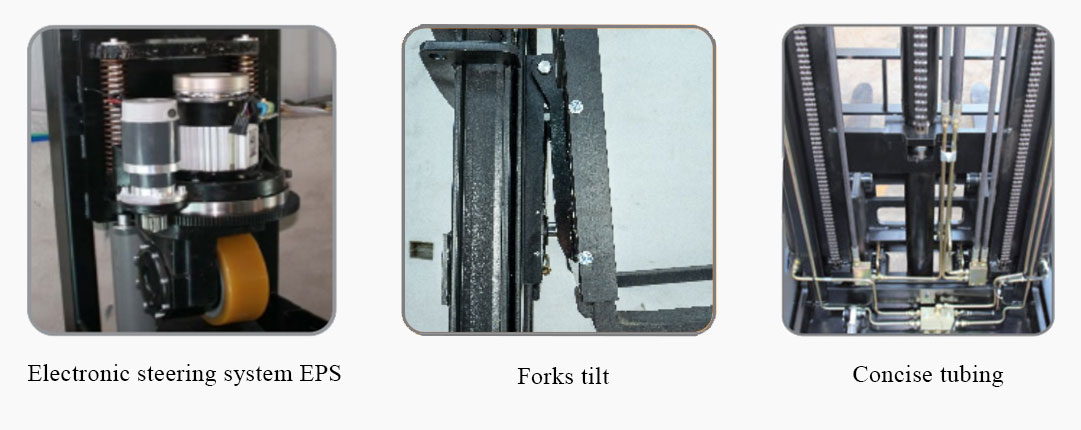

1.The electronic power steering system is light and flexible, with good handling performance, and can reduce the fatigue of the operator.
2.H-shaped gantry is more solid and stable. The side cylinder design ensures wide field of view operation.
3.The fork has the function of tilting forward and backward, which is conducive to the loading and unloading of goods.
4.Higher ground clearance and reliable trafficability.
5.Automatic deceleration when turning, more safe and reliable function.
6.The wiring is neat, easy to maintain and not easy to break.
7.Side shift is optional.
More safe and convenient operation
Emergency reverse driving function;
Emergency power off switch as standard configuration;
The ergonomically designed control handle imported from Germany is convenient for left and right hand operation and improves driving comfort.
With electronic steering system, the operation is easier and the steering is more flexible. High performance
High quality hydraulic system, low noise, low vibration, strong sealing, ensuring stable and reliable lifting and lowering speed;
Precise electronic limit switch can accurately control the maximum lifting height to prevent damage to the motor.
Multi way valve hydraulic control system, adjustable speed for lifting, fore and aft movement and fore and aft tilt.
Equipped with advanced AC drive motor, maintenance-free, effectively reduce maintenance costs, and large capacity battery, strong power, to meet the customer warehouse goods stacking and handling work, efficiently improve warehousing logistics efficiency. Safety guardrail and shock-proof pedal, effectively protect the driver; Speed limit function for turning and high level. Multifunctional handle stepless adjustment, more comfortable and safe operation; Electric steering system makes it easier for the driver to operate.
|
Model |
QQA12/15/20 | ||
|
Drive Model |
Electric |
||
|
Operating |
Stand |
||
|
Rated Capacity |
Q(kg） |
1200/1500/2000 |
|
|
Load Center Distance |
c(mm） |
500 |
|
|
Load distance,centre of drive axle to fork |
X(mm) |
350 |
|
|
Wheelbase |
Y(mm) |
1280/1280/1380 |
|
|
Service weight(with battery) |
kg |
1750/1950/2190 |
|
|
Wheels |
polyurethane wheel |
||
|
Wheel dimension, front |
mm |
Φ250*75 |
|
|
Wheel dimension, rear |
mm |
Φ210*85 |
|
|
Wheel number, front/rear (x = driving wheel) |
1x/2 |
||
|
Thread, rear |
b11(mm) |
905 | |
|
Max. Lift Height |
h3 |
2500/3000/3500/4000/4500/5000/5500 |
|
|
Free Lift Height |
mm |
300 |
|
|
Height, Fork Lowered |
h13(mm) |
35/40 |
|
|
Reach distance |
/3(mm) |
500 |
|
|
Ground clearance |
m2(mm) |
50 |
|
|
Extended Mast Height |
h4(mm) |
3650/3760/4260/4760/5260/5760/6260 |
|
|
Lowered Mast Height |
h1(mm) |
1750/2015/2250/2500/2015/2170/2340 |
|
|
Overall Length |
/1(mm) |
2210/2310 |
|
|
Overall Width |
b1(mm) |
990 |
|
|
Fork Dimension |
S/e/l(mm) |
35*100*1070/40*122*1070 |
|
|
Fork Width |
b5(mm) |
200~680 |
|
|
Aisle Width, with pallet 1000x1200 crosswise |
Ast(mm) |
2610/2610/1070 |
|
|
Aisle Width, with pallet 800x1200 lengthwise |
Ast(mm) |
2670/2670/2770 |
|
|
Turning Radius |
Wa(mm) |
1550/1650 |
|
|
Max. Gradient, load/unload |
% |
5/8 |
|
|
Traveling Brake |
Electromagnetic-regenerative braking |
||
|
Driving Motor Power |
kW |
l.5/1.5/1.5(AC) |
|
|
Lifting Motor Power |
kW |
4.5/4.5/4.5 | |
|
Battery Voltage/Rated Capacity |
V/Ah |
24V/(210/210/280)AH |
|
|
Battery Weight |
kg |
190/190/260 |
|
|
Turing Mode |
Electric steering |
||
|
Noise level at operator's ear,according to DIN12053 |
dB(A) |
＜70 |
|
