ECONOMIC ELECTRIC PALLET STACKER

QDA E/EL

Lifting height:

1600mm, 2500mm, 3000mm, 3500mm

1.The optimally designed four-wheel structure makes the chassis stable and safe.

2.High-quality C-shaped gantry alloy steel, the rigidity is 30% higher than that of ordinary carbon steel.

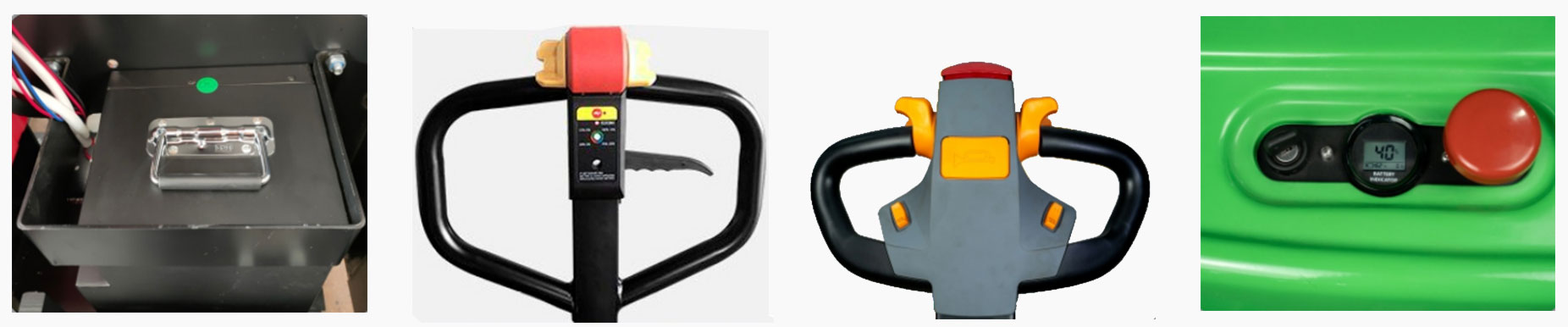

3.Built-in high-energy sealed battery, long-term maintenance-free use, no need to add liquid or water during the service life.

4.Stepless control of the driving speed to meet the rhythm of different drivers.

5.The layout of all parts and pipelines of the whole vehicle is reasonable, the maintenance is convenient, and there is no trouble in maintenance of similar vehicles.

6.The vehicle has a beautiful appearance and beautiful curves.

7.With explosian-proof valve at the bottomof cylinder, even if the pipe burst,the mast will not rapidly decline.
8.Curtis controiller.

9.Operating handle is on the side,allawingoperators to work with greater vision.

10.Precision electronic limn iMmt ta oreNentaf the maximum lifting height, to prevent damage to the motor.

11.Truck circuit lines lin nylon casing, wiringclean and corrosion-resistant, oil resistant,abrasion resistant.

12.Emergency reverse switch.Emergency power-off disconnect.

QDA-E and EL series is an economical pallet stacker. It adopts the streamlined industrial design concept, with smart appearance and small turning radius. It is widely used in various industries such as warehouses, supermarkets and workshops

Strong power, load 1 ~ 1.5 tons, to meet the majority of customers handling needs,The vehicle has regenerative braking and slope protection.

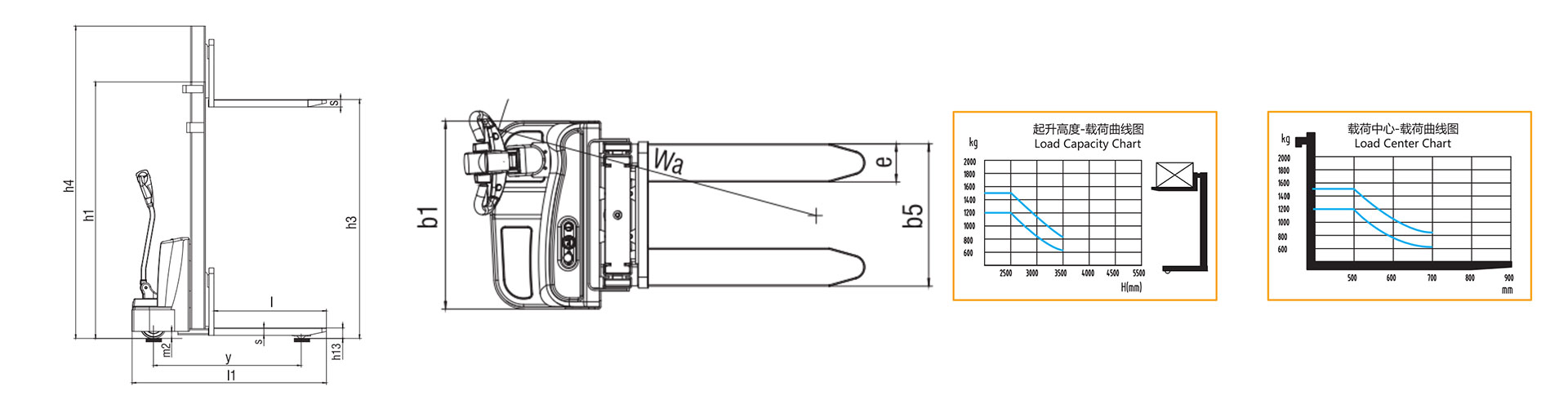

Model		QDA10E/QDA12E/QDA15E	QDA10EL/QDA12EL
Drive Type		Electric(Battery)	Electric (battery)
Operate Type		Walkie	walk
Rated capacity	Q(kg)	1000/1200/1500	1000/1200
Load center	c(mm)	600	600
Service weight (with battery)	kg	553	553
Wheels	Polyurethane wheel
Lift height	h3(mm)	1600/2500/3000/3500	1600/2500/3000/3500
Lowered mast height	hl(mm)	2080/1830/2080/2300	2080/1830/2080/2300
Overall height	h4(mm)	2050/2950/3450/3950	2050/2950/3450/3950
Min. fork height	hl3(mm)	90	90
Overall length	l1(mm)	1750	1750
Overall width	b1(mm)	790	790
Forks size	S/e/l(mm)	60/142/1070	60/142/1070
Forks width	b5(mm)	570/660	570/660
Groimd clearance	m2(mm)	30	30
Aisle Width, with pallet 1000x1200 crosswise	Ast(mm)	2145	2145
Aisle Width, with pallet 800x1200 lengthwise	Ast(mm)	2050	2050
Turning radius	Wa(mm)	1390	1390
Drive speed,;laden/unladen	Km/h	3.5/4	3.5/4
Lift speed,laden/unladen	mm/s	100/200	100/200
Lower speed,laden/unladen	mm/s	120/100	120/100
Max. gradient,laden/unladen	%	3/10	3/10
Travel brake	Electromagnetic-regenerative braking
Drive motor power	kW	0.75	0.6
Lift motor power	kW	2	2
Battery voltage/rated capacity	V/Ah	75/75/120Ah	2*12/65/85
Noise level at operator's ear, according to DIN12053	dB(A)	＜70	＜70
