简体中文Three-point electric forklift
CPDS12/CPDS16/CPDS18
.png "Three-point electric forklift")
Standard with solid tyre, side battery

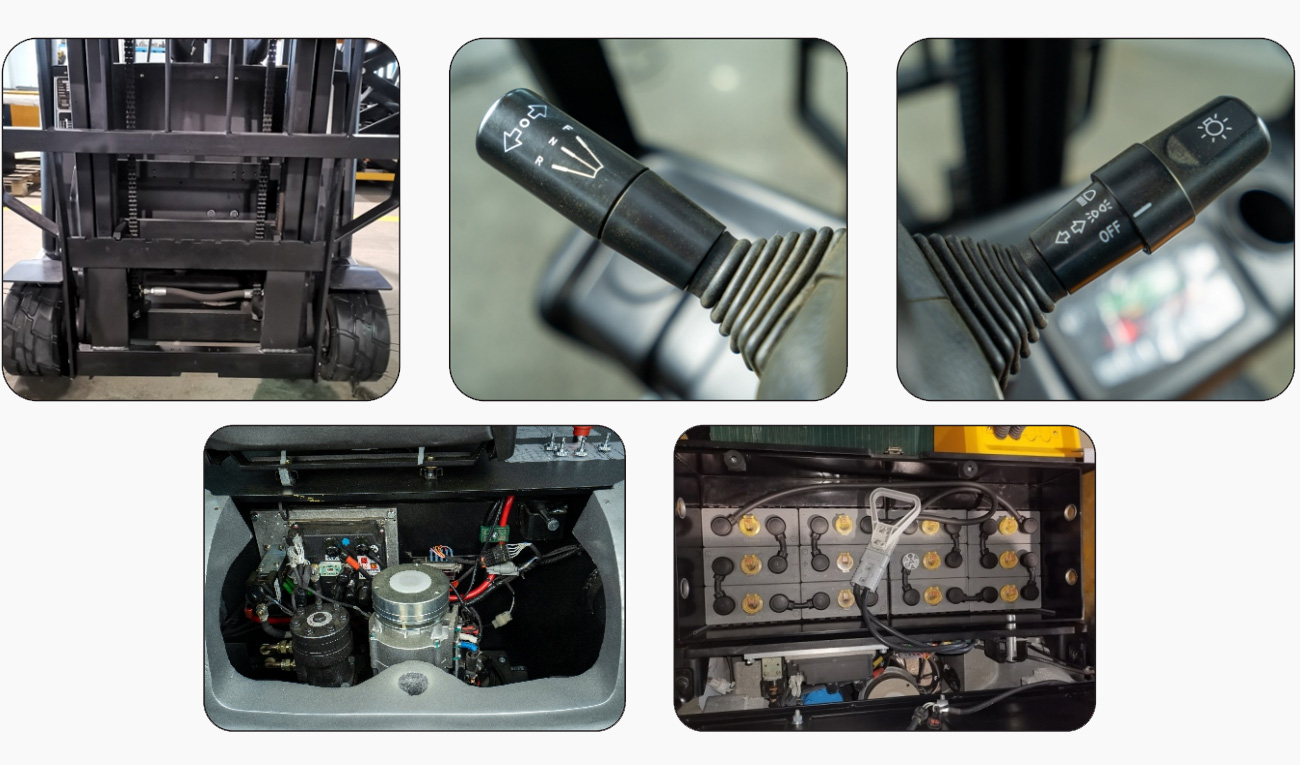

ADVANTAGES
| High efficiency | High Stability |
| CAN-Bus technology reduces maintenance and increase overall performance | Low battery protection prolongs the usable life of battery |
| AC drive system provides strong power and stability performance | Low center of gravity ensures vehicle operation more stable |
| Advanced control system reduces failure rate,increasing work efficiency | Reliable hydraulic system ensures smooth stacking shelves with goods |
| High Safety | Easy maintenance |
| Emergency button switch makes more satety and reliability during operation | AC Motor reduces replacement of Carbon brush |
| New design of mast structure provides a wide operation view | Multi-LCD digital display provides fast and accurate monitoring vehicle status |
| Regenerative braking reduces power consumption and extends battery working time |
Classic three-fulcrum design, compact body, strong power, high climbing performance, after nearly 10 years of market verification, reliable quality, wide range of application, improve handling efficiency, and can provide customized services for various industries
|

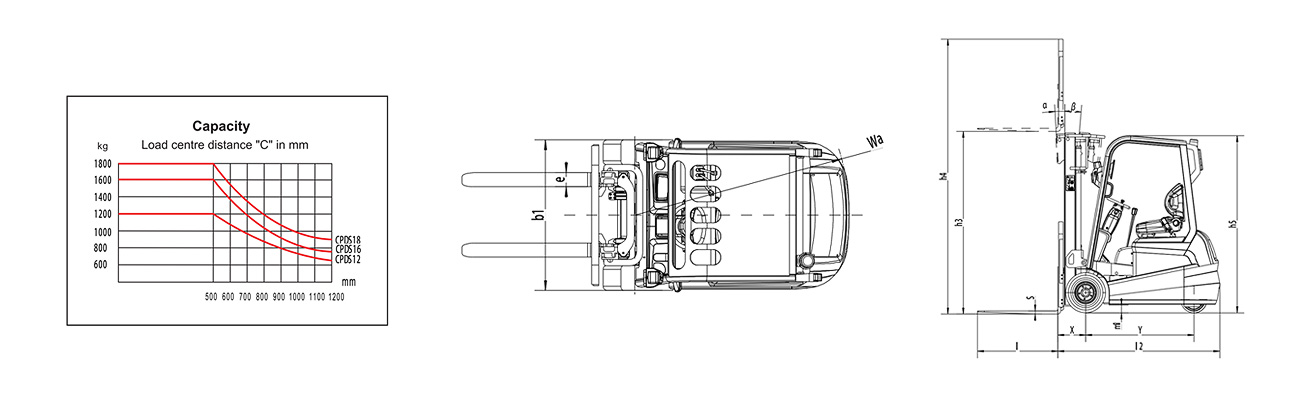

Model
|
|
CPDS12 | CPDS16 | CPDS18 | |
| Drive | Electric | ||||
| Load capacity/rated load |
Q(kg) |
1200 |
1600 | 1800 |
|
| Load centre distance |
C(mm) |
500 |
|||
| Lift height |
h3(mm) |
3000 |
|||
| Free lift |
h2(mm) |
135 |
135 | 135 |
|
| Mast/fork carriage tilt forward/backward |
a/p(°) |
4/5 |
3/5
|
||
| Lowered mast height |
h1(mm) |
2012 |
2025 |
||
| Overhead load guard(cab) height |
h5(mm) |
1966 |
2010 |
||
| Ground clearance,centre of wheelbase |
m1(mm) |
86 |
90 |
||
| Length to face of forks |
I2(mm) |
1654 |
1861 |
||
| Overall width |
b1(mm) |
1070 |
1070 |
||
| Fork dimensions |
s/e/l(mm) |
35x100x920 |
35x100x920 |
||
| Fork width |
mm |
200-660 |
200-970 |
||
| Load distance,centre of drive axle to fork |
x(mm) |
184 |
324 |
||
| Turning radius |
Wa(mm) |
1495 |
1537 |
||
| Extended mast height |
h4mm |
4047 |
4047 |
||
| (1000*1200 crosswise) |
Ast(mm) |
3010 |
3186 |
||
| (800*1200 lengthwise) |
Ast(mm) |
3125 |
3308 |
||
| Travel speed,laden |
km/h |
6.4 |
7.5 |
||
| Travel speed,unladen |
km/h |
7.2 |
8.5 |
||
| Lift speed,laden/unladen |
mm/s |
120/260 |
160/260 |
||
| Drop speed,laden/unladen |
mm/s |
300/400 |
350/428 |
||
| Max gradient performance,laden |
% |
6 |
8 |
||
| Max gradient performance,unladen |
% |
10 |
12 |
||
| Service brake |
Electric brake |
||||
| Tyre size,front |
Φ0305x145/2 |
18x7-8/2 |
|||
| Tyre size,rear |
Φ0250x120 |
Φ0300x120 |
|||
| Track width .front |
mm |
910 |
891 |
||
| Track width,rear |
mm |
0 |
0 |
||
| Wheelbase |
mm |
1250 |
1240 |
||
| Service weight incl.battery |
kg |
2075 |
2100 | 2736 |
|
| Drive motor |
kw |
2.2 |
3 |
||
| Lift motor |
kw |
3.3 |
4.5 |
||
| Battery voltage,nominal capacity k5 |
V/Ah |
24V/320 |
24V/320 | 24V/400 |
|
| Type of drive control |
AC |
AC |
|||
| Manufacturer of drive control |
ZAPI
|
||||
| Operating pressure for attachments | Mpa | 16 | |||
