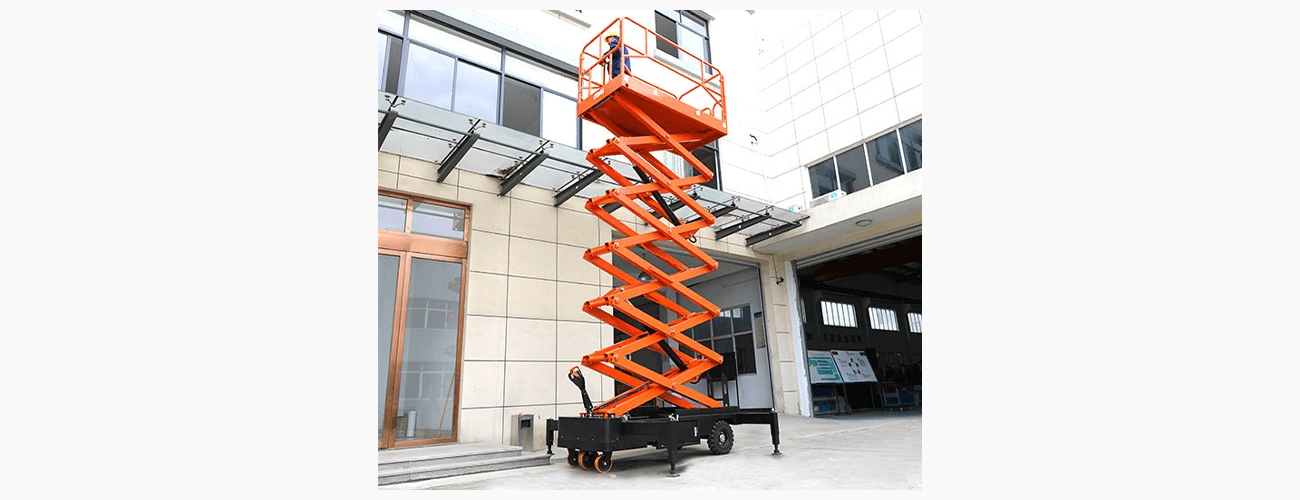

Scissor lifting platform with pulling device

Main specifications
● Working height: 6m, 8m, 10m and 12m
● Working load: 500kg
Important features
● As the power source, the battery has low noise and no pollution, suitable for various working environments
● Equipped with a traction handle device to achieve the purpose of moving the machine lightly by one person operation
● A one-way extension platform can be added to quickly reach the operating point

Model specification		SJY0.5-6	SJY0.5-8	SJY0.5-10	SJY0.5-12
Platform height	mm	6000	8000	10000	12000
Minimum platform height	mm	1050	1175	1300	1425
Working platform size	mm	2270x1150
Platform load rating	kg	500	500	500	500
Expanded leg size	mm	2700x2200	2700x2200	2700x2200	2700x2200
Rise Time	s	50	50	80	80
motor	v/kw	24/1.2	24/1.2	24/1.2	24/1.2
Lifting motor	v/kw	24/2.2	24/2.2	24/3	24/3
Battery	v/Ah	2x12/120	2x12/120	2x12/120	2x12/120
charger	v/A	24/15	24/15	24/15	24/15
Motor Power	kw	2.2	2.2	3	3
Length of the whole machine	mm	2670
Overall width	mm	1300	1300	1300	1300
Overall height (folding railing)	mm	1730	1855	1980	2105
Total Weight	kg	1380	1560	1970	2150
