ADVANTAGES
| High efficiency | High Stability |
| CAN-Bus technology reduces maintenance and increase overall performance | Low battery protection prolongs the usable life of battery |
| 100%AC system ensures high performance and stability and smooth operation | Low center of gravity ensures vehicle operation more stable |
| Advanced control system reduces failure rate,increasing work efficiency | Reliable hydraulic system ensures smooth stacking shelves with goods |
| High Safety | Easy maintenance |
| Manual emergency valve ensures more safety once electric source is cut-off | AC Motor reduces replacement of Carbon brush |
| Emergency button switch makes more satety and reliability during operation | Multi-LCD digital display provides fast and accurate monitoring vehicle status |
| New design of mast structure provides a wide operation view | |
| Regenerative braking reduces power consumption and extends batteryworking time | |
| Both LCD display and camera makes more safe operation when reversing |
1.High level picking forklift Advanced picking electric forklift has significant effect on improving work efficiency and at the same time, the axle base is lengthened to ensure safety;
2.Small turning radius, suitable for narrow channels, can be used for tallying high altitude platform;
3.The cab is designed according to the most advanced ergonomics, with good operation comfort and high sorting efficiency;
4.The suspended driving platform can ensure stable and efficient picking;
5.Efficient energy-saving design and energy regeneration system can make the battery perform better after each charging;
6.The independent braking system can brake effectively in balance under any working condition;
7.The two handed control mode and side door protection can ensure the driver's personal safety.
The order picker facilitates warehouse parts selection, replenishment, and allows the operator to record inventory.
• 4200mm Platform Height
• 400kg Capacity (including operator)
No dangerous ladders, steps and stools needed. You don't need a forklift with a fork and a few crew members.
Order pick can reduce labor costs, save time, improve work efficiency, and reflect the perfect performance value in practical application.
|

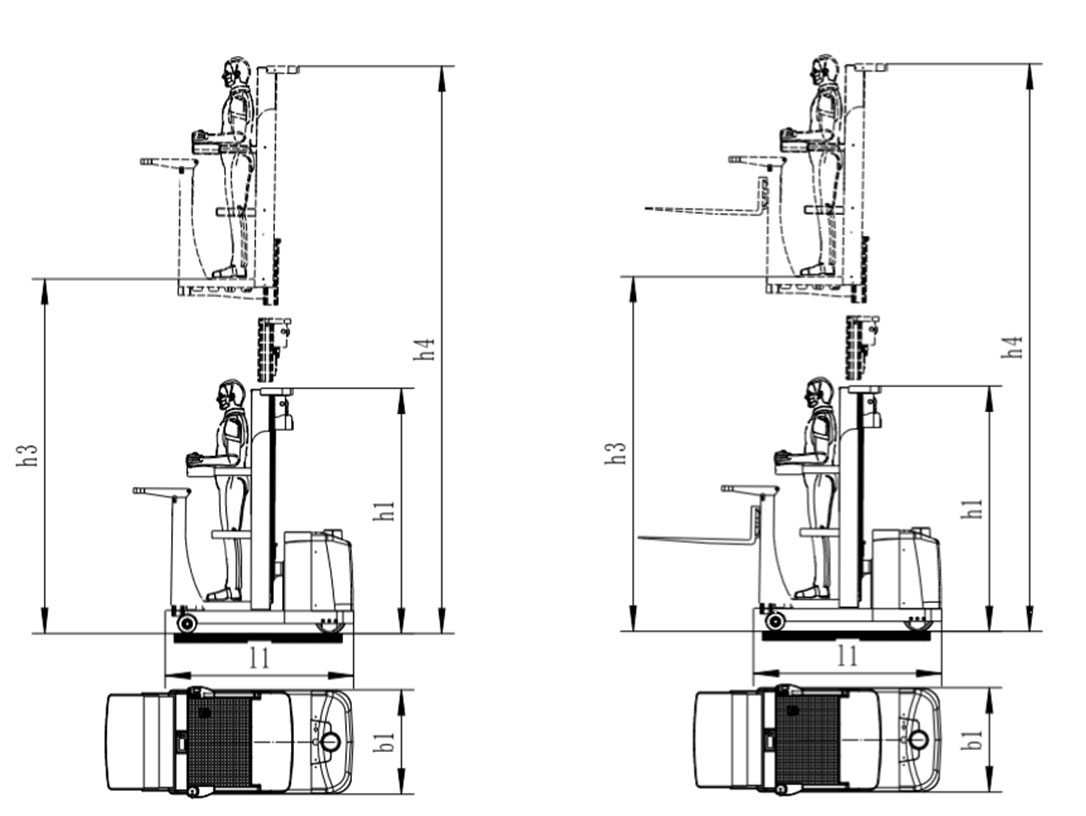

Model |
QDJ-V2 |
QDJ-V2 |
QDJ-V2 |
QDJ-V3 |
QDJ-V3 |
|
|
Drive |
Electric |
Electric |
Electric |
Electric |
Electric |
|
|
Operating |
Stand-on |
Stand-on |
Stand-on |
Stand-on |
Stand-on |
|
|
LoadCapacity=GoodsTray+ForkPlatform |
Q（kg） |
400kg |
400kg |
400kg |
400kg |
400kg |
|
Max.Good Tray Capacity |
Q1（kg） |
300kg |
300kg |
300kg |
300kg |
300kg |
|
WheelMaterial |
PU |
PU |
PU |
PU |
PU |
|
|
Drive Wheel |
mm |
F250X75 |
F250X75 |
F250X75 |
F250X75 |
F250X75 |
|
Load Wheel |
mm |
F152X75 |
F152X75 |
F152X75 |
F152X75 |
F152X75 |
|
Lowered mast height |
h1(mm) |
1595 |
1700 |
1955 |
1700 |
2230 |
|
Max.Working Height |
h4(mm) |
4630 |
4985 |
6075 |
4985 |
7055 |
|
Lifting height |
h3(mm) |
3200 |
3500 |
4200 |
3500 |
5000 |
|
Overall Length |
l1(mm） |
1500 |
1500 |
1500 |
1510 |
1510 |
|
Overall Lengthwith Goods Tray |
1745 |
1745 |
1745 |
1745 |
1745 |
|
|
Overall width |
b1(mm) |
832 |
832 |
832 |
832 |
832 |
|
Operating handle height |
h5(mm) |
1065 |
1065 |
1065 |
1065 |
1065 |
|
Ground Clearance |
M2(mm) |
81 |
81 |
81 |
81 |
81 |
|
Aisle Width |
Ast(mm) |
1930 |
1930 |
1930 |
1835 |
1835 |
|
Turning Radius |
Wa(mm） |
1405 |
1405 |
1405 |
1405 |
1405 |
|
Drive Speed（1st） |
Km/h |
5 |
5 |
5 |
5 |
5 |
|
Drive Speed（2nd） |
Km/h |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|
Drive Speed（3rd） |
Km/h |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
|
Drive Speed（4th） |
Km/h |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
Max.gradient,load/unladen |
% |
- |
- |
- |
- |
- |
|
Drive Motor |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
Drive Motor |
KW |
3 |
3 |
3 |
3 |
3 |
|
Battery Voltage/Capacity |
KW |
24V/210Ah |
24V/210Ah |
24V/210Ah |
24V/210Ah |
- |
|
Turning Model |
V/Ah |
EPS |
EPS |
EPS |
EPS |
EPS |
|
Controller Model |
AC |
AC |
AC |
AC |
AC |
|
