简体中文Hand pallet truck
SBA
.png "Hand pallet truck")
INNOVATION DESIGN
Innovative design>Reduce maintenance cost>Increase work efficiency>Extend service life
1.High reliability,suitale for a variety of environments. lt can be used for3~5years under normal maintenance.Innovative design>Reduce maintenance cost>Increase work efficiency>Extend service life
2.The first design of forging & castng integral pump, which prevents anyloosening and leakage.
3.High-strength alloy steel carefully rafted, increased loading apacity.
4.Set the active safety valve to prevent overloading of operation.
5.54mm fork thickness ensures high capacity.
The first all-in-one casting and welding pump
The first cast-welded all-in-one pump to prevent any loosening and leakage. It is suitable for various environments, and its lifespan can be as long as 3-5 years under normal use.
High reliability
The shape and lines are smooth, the style is unique, and the power and beauty are coexisting. Alloy steel high-strength steel plate is carefully crafted and has a large bearing capacity.
Set active safety valve to avoid overload use.
Humanized design, equipped with foot pedals and guide wheels as standard, easy to operate, improve efficiency and reduce labor intensity.
easy maintenance

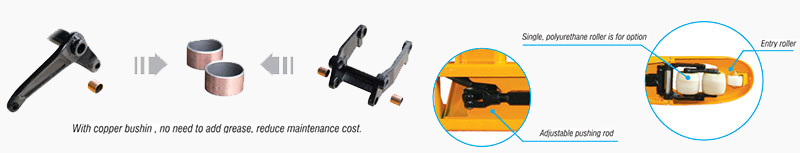

The use of wear-resistant copper sleeve, maintenance-free design, safe and worry-free use. At the same time greatly reduce cost and time.
SBA is a short distance handling of industrial vehicles, The product has the advantages of balanced lifting, flexible rotation and easy operation. The truck itself is light and easy to operate. Use an integrated hydraulic pump. High strength steel fork structure, safe, reliable, durable. Low price, economical and practical,suitable for automobile loading and unloading and workshop, warehouse, dock, station, yard and other places.
Capacity: 2000 / 2500 / 3500 / 5000kg
Option:Scale,Galvanize,Brake,Low profile,
Internal relief valve provides overload protection, drop speed control
|

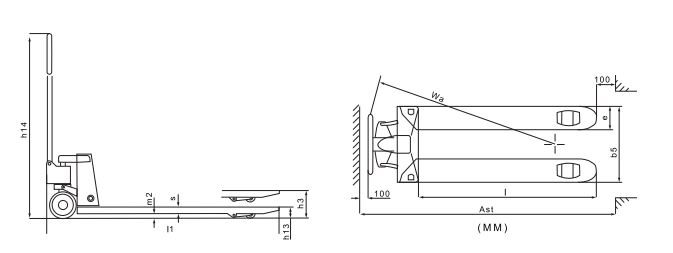

Model |
SBA |
|||
|
Load capacity |
Q(kg) |
2500 |
3000 |
3500 |
|
Steering wheel |
mm |
Φ180x50 |
Φ180x50 |
Φ180x50 |
|
Fork wheel single |
mm |
Φ80x93/Φ74x93 |
Φ80x93/Φ74x93 |
Φ80x93/Φ74x93 |
|
Fork wheel tandem |
mm |
Φ80x70/Φ74x70 |
Φ80x70/Φ74x70 |
Φ80x70/Φ74x70 |
|
Lifting height |
h3(mm) |
200/190 |
200/190 |
200/190 |
|
Lowered height |
h13(mm) |
85/75 |
85/75 |
85/75 |
|
Overall length |
/1mm) |
1534/(1604) |
1534/(1604) |
1534/(1604) |
|
Fork dimensions |
s/e/l |
54/160/1150(1220) |
54/160/1150(1220) |
54/160/1150(1220) |
|
Distance between fork-arms |
b5(mm) |
520/550/680 |
520/550/680 |
520/550/680 |
|
Turning radius |
Wa(mm) |
1249/1319 |
1249/1319 |
1249/1319 |
|
Ground clearance, centre of wheelbase |
m2 (mm) |
32 |
32 |
32 |
|
Height of tiller in drive position max |
h14 (mm) |
1224 |
1224 |
1224 |
