48V LITHIUM ELECTRIC PALLET TRUCK

L

ADVANTAGES
1.Multi-functional Tiller

2.Battery discharge indicator

3.Built-in pressire relief valve

4.Low battery protection

5. Emergency stop switch

6.Platform & guard arm

7.Robust chassis design

8.Accuracy electronic switches

high performance	Safer and more convenient operation
High quality hydraulic station with low voice. Low vibration, strong sealing, automatic adjustment of descending speed to ensure stable and reliable lifting and descending speed; Precise electronic limit switch to accurately control the maximum lifting height to prevent damage to the motor.	Emergency reverse driving function; Emergency power off switch as standard; The ergonomically designed control handle imported from Germany is convenient for left and right hand operation. All operation functions can be easily realized by simple buttons on the handle, which improves driving comfort.
With electronic steering system, the operation is easier and the steering is more flexible.

L series of electric carrier vehicle smooth lines, in line with the ergonomics design concept, the use of reliable DC drive motor, economic and efficient.

The newly designed floating drive suspension system makes the vehicle ride more smoothly and operate more comfortably

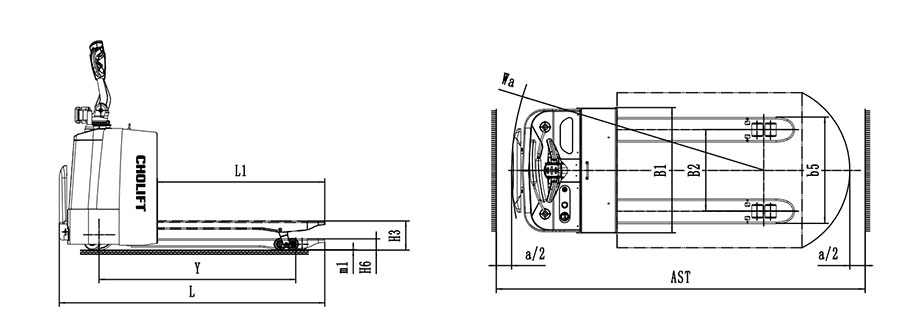

MODEL		QBA20LA	QBA25LB	QBA25LB
Drive		Electric	Electric	Electric
Operator type		stand	stand	stand
Load capacity/rated load	Q(kg)	2000	2500	2000
Load centre distance	C ( mm)	600	600	600
Life height	h3 ( mm )	200	200	200
Low ered fork height	h13 ( mm)	85	85	82
Fork dimensions	s/e/l ( mm )	60/160/1150	60/160/1150	60/160/1150
Width over forks	b5 ( mm )	550/685	550/685	550/685
Turning radius	Wa (mm)	1636 (fold)/2045	1636 (fold) /2045	1935
Wheelbase	Y ( mm)	1354	1357	1357
Tyres	Polyurethane
Wheel Size,Front Wheel	mm	Φ250X75	Φ250X75	Φ250X75
Wheel Size,Rear Wheel	mm	Φ80X80	Φ80X80	Φ82X98
Additional Wheel	mm	Φ115X50	Φ115X50	Φ115X50
Tread,front	b10 ( mm)	590	590	590
Tread,rear	b11 ( mm)	391/526	391/526	391/526
1000X1200 Lengthw ise	Ast ( mm)	2394 (fold)/2803	2394 (fold)/2803	2665
800X1200 Lengthw ise	Ast ( mm)	2307 (fold)/2716	2307 (fold)/2716	2580
Travel speed,laden/unladen	km/h	4.3/4.7	5/5.5	8/9
Lift speed,laden/unladen	mm/s	35/38	29/37	25/31
Max gradient performance,laden/unladen	%	6/10	8/12	8/12
Overall Length	l1 ( mm )	1825 (fold）/2234	1825 (fold)/2234	2120
Overall Width	b1 (mm )	808	808	848
Service brake	Electric brake
Battery voltage/nominal capacity	V/Ah	24V/100	24V/100	24V/150
Manufacturer of drive control		CURTIS	ZAPI/CURTIS	CURTIS
Drive motor	kw	0.85	1.5	2.2
Lift motor	kw	0.8	0.8	0.8
Service weight（with battery）	kg	500	670	700
Steering		Mechanical	Electronic steering	Electronicsteering
